Render Class Reference

#include <Render.h>

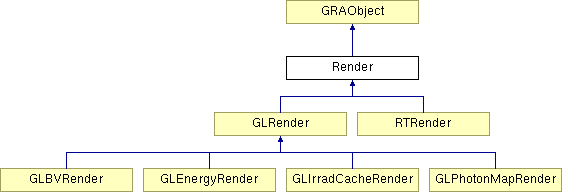

Inheritance diagram for Render:

List of all members.

Public Member Functions
	Render (int *setStopFlag)
virtual	~Render ()
virtual void	renderScene (Shader &shader, FrameBuffer &fb, Camera &camera, Scene &scene)
Protected Member Functions
virtual void	_render (Shader &shader, FrameBuffer &fb, Camera &camera, Scene &scene)=0
Protected Attributes
int *	_pStopFlag

---

Detailed Description

Render works in the space of picture and is responsible for pixel-based operations, e.g. rasterization, antialiasing, morphing, etc.

Frame-buffer must be initialized, e.g. cleared.

Definition at line 25 of file Render.h.

---

Constructor & Destructor Documentation

Render (  int *  setStopFlag  )  [inline]

Constructor Parameters: setStopFlag  pointer to stop flag Definition at line 50 of file Render.h.

virtual ~Render (   )  [inline, virtual]

Destructor Definition at line 55 of file Render.h.

---

Member Function Documentation

virtual void _render (  Shader &  shader, FrameBuffer &  fb, Camera &  camera, Scene &  scene )  [protected, pure virtual]

Method which can be redefined in subclasses. This is the preffered way, rather then teh redefinition of the renderScene() method. Parameters: shader  shader fb  frame-buffer camera  camera scene  rendered scene Implemented in GLBVRender, GLEnergyRender, GLIrradCacheRender, GLPhotonMapRender, GLRender, and RTRender.

virtual void renderScene (  Shader &  shader, FrameBuffer &  fb, Camera &  camera, Scene &  scene )  [inline, virtual]

To re-implement the rendering method in derived classes use protected function _render() unless you know what you do. Parameters: shader  shader fb  frame-buffer camera  camera scene  rendered scene Definition at line 66 of file Render.h. References Scene::root(). Referenced by GLIrradCacheRender::_render().

---

Member Data Documentation

int* _pStopFlag [protected]

Definition at line 27 of file Render.h. Referenced by RTRender::_render().

---

The documentation for this class was generated from the following file:

• include/gra/render/Render.h

---
