Shader Class Reference

#include <Shader.h>

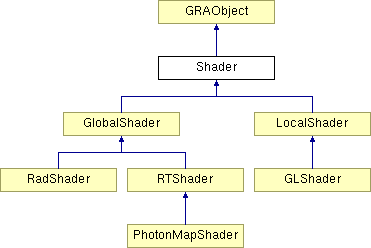

Inheritance diagram for Shader:

List of all members.

Public Member Functions
	Shader (ReflectionModel *m, DiffuseBRDF *db, SpecularBRDF *sb)
virtual	~Shader ()
virtual void	setScene (Scene *o)
virtual void	distributeEnergy (void)=0
virtual bool	setRenderedShape (SceneGraphObject *pShape, const Matrix4 *pTrMat)
virtual Color3f *	illuminatePoint (const Vector3 &location, const Vector3 &normal, const Vector3 &eyeDir, float eyeDist, double *pNV, const Matrix4 *pTrMat)=0
Protected Attributes
ReflectionModel *	_pReflectionModel
SceneGraphObject *	_pShape
Scene *	_pScene
DiffuseBRDF *	_pDefaultDiffBRDF
SpecularBRDF *	_pDefaultSpecBRDF

---

Detailed Description

Shader works in the space of scene and is responsible for distribution of energy. It works in two modes: (1) view-independent global energy distribution in the whole scene and (2) computation of the final color of arbitrary point on surface, using precomputed global energy from the first stage

Protocol: shader.setScene(scene); shader.distributeEnergy(); // can do nothing // next calls are ususally invoked inside renderer: shader.setRenderedShape(shape, trMat); for (interesting points on object's surface) { shader.illuminatePoint(...,trMat); // the same trMat or NULL when // given vectors are already // transformed }

Definition at line 34 of file Shader.h.

---

Constructor & Destructor Documentation

Shader (  ReflectionModel *  m, DiffuseBRDF *  db, SpecularBRDF *  sb )  [inline]

Constructor. Parameters: m  reflection model db  default diffuse BRDF sb  default specular BRDF Definition at line 50 of file Shader.h.

virtual ~Shader (   )  [inline, virtual]

Destructor. Definition at line 60 of file Shader.h.

---

Member Function Documentation

virtual void distributeEnergy (  void   )  [pure virtual]

View-independent global energy distribution in the whole scene (first stage of the global illumination process) Implemented in LocalShader, PhotonMapShader, RadShader, and RTShader.

virtual Color3f* illuminatePoint (  const Vector3 &  location, const Vector3 &  normal, const Vector3 &  eyeDir, float  eyeDist, double *  pNV, const Matrix4 *  pTrMat )  [pure virtual]

View-restricted illumination of individual points on surface (second stage of the global illumination process). Two combinations of parametters are possible: 1) Vectors are not transformed and the transformation matrix is identical to the matrix of the setRenderedShape() function. 2) Vectors are already transformed and the matrix is NULL. Parameters: location  point's location on surface (space coords.) normal  normalized normal vector eyeDir  normalized direction from towards viewer eyeDist  distance to viewer pNV  either cross-product of normal and eyeDir or NULL pTrMat  transformation matrix or NULL Returns: final color of the point on success, NULL otherwise Implemented in GLShader, RadShader, and RTShader. Referenced by RTRender::_render_pixel_point(), and RadShader::illuminatePoint().

virtual bool setRenderedShape (  SceneGraphObject *  pShape, const Matrix4 *  pTrMat )  [inline, virtual]

Sets the shape of interest used for per-surface point illumination, see illuminatePoint(). Parameters: pShape  shape of interest pTrMat  transformation matrix of the shape Reimplemented in GLShader, PhotonMapShader, and RadShader. Definition at line 85 of file Shader.h. Referenced by GLRender::_render(), GLBVRender::_render(), RTRender::_render_pixel_point(), RadShader::setRenderedShape(), and PhotonMapShader::setRenderedShape().

virtual void setScene (  Scene *  o  )  [inline, virtual]

Sets the scene for energy distribution, see distributeEnergy(). Parameters: o  scene Reimplemented in PhotonMapShader, and RadShader. Definition at line 67 of file Shader.h. Referenced by PhotonMapShader::setScene().

---

Member Data Documentation

DiffuseBRDF* _pDefaultDiffBRDF [protected]

Definition at line 39 of file Shader.h. Referenced by PhotonMapShader::distributeEnergy().

SpecularBRDF* _pDefaultSpecBRDF [protected]

Definition at line 40 of file Shader.h. Referenced by PhotonMapShader::distributeEnergy().

ReflectionModel* _pReflectionModel [protected]

Definition at line 36 of file Shader.h. Referenced by RadShader::distributeEnergy(), and RTShader::illuminatePoint().

Scene* _pScene [protected]

Definition at line 38 of file Shader.h. Referenced by PhotonMapShader::_create_maps_per_shape(), PhotonMapShader::_create_scene_maps(), PhotonMapShader::_emit_caustic_photon(), PhotonMapShader::_emit_global_photon(), PhotonMapShader::distributeEnergy(), and RadShader::setScene().

SceneGraphObject* _pShape [protected]

Definition at line 37 of file Shader.h. Referenced by RTShader::illuminatePoint(), and GLShader::setRenderedShape().

---

The documentation for this class was generated from the following file:

• include/gra/shader/Shader.h

---
