Architecture Class Reference

#include <Architecture.h>

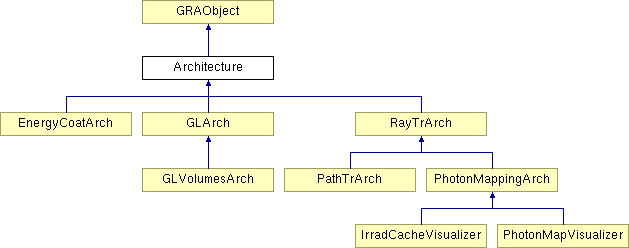

Inheritance diagram for Architecture:

List of all members.

Public Member Functions
	Architecture (Params &params)
virtual	~Architecture ()
virtual Render *	createRender (void)=0
virtual Shader *	createShader (void)=0
Protected Attributes
int *	_pStopFlag
DiffuseBRDF *	_pDefaultDiffuseBRDF
SpecularBRDF *	_pDefaultSpecularBRDF
Classes
struct	Params

---

Detailed Description

Abstract factory for graphics architectures, which instantiates mutually compatible components.

Definition at line 22 of file Architecture.h.

---

Constructor & Destructor Documentation

Architecture (  Params &  params  )  [inline]

Constructor Parameters: params  parametrs of the architecture Definition at line 43 of file Architecture.h. References Architecture::Params::diffBRDF, Architecture::Params::specBRDF, and Architecture::Params::stopFlag.

virtual ~Architecture (   )  [inline, virtual]

Destructor Definition at line 52 of file Architecture.h.

---

Member Function Documentation

virtual Render* createRender (  void   )  [pure virtual]

Returns: render of this architecture Implemented in EnergyCoatArch, GLArch, GLVolumesArch, IrradCacheVisualizer, PhotonMapVisualizer, and RayTrArch.

virtual Shader* createShader (  void   )  [pure virtual]

Returns: shader of this architecture Implemented in EnergyCoatArch, GLArch, PhotonMappingArch, and RayTrArch.

---

Member Data Documentation

DiffuseBRDF* _pDefaultDiffuseBRDF [protected]

Definition at line 25 of file Architecture.h. Referenced by RayTrArch::createShader(), and PhotonMappingArch::createShader().

SpecularBRDF* _pDefaultSpecularBRDF [protected]

Definition at line 26 of file Architecture.h. Referenced by RayTrArch::createShader(), and PhotonMappingArch::createShader().

int* _pStopFlag [protected]

Definition at line 24 of file Architecture.h. Referenced by RayTrArch::createRender(), and IrradCacheVisualizer::createRender().

---

The documentation for this class was generated from the following file:

• include/gra/arch/Architecture.h

---
