i3d::ImageWriter Class Reference
[Image input/output methods]

#include <imgfiles.h>

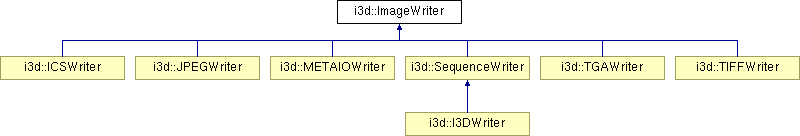

Inheritance diagram for i3d::ImageWriter:

List of all members.

Public Member Functions
	ImageWriter (const char *fname)
	constructor
virtual	~ImageWriter ()
	destructor
void	SetDim (size_t w, size_t h, size_t d)
	set the image dimension
void	SetDim (Vector3d< size_t > sz)
	set the image dimension
void	SetVoxelType (ImgVoxelType vt)
	set image voxel type
void	SetCompression (bool comp)
void	SetResolution (Vector3d< float > v)
	set image resolution
virtual void	SaveImageInfo ()
	save image header
void	SetOffset (Offset _off)
	set offet of the image
virtual void	SaveImageData (const GRAY8 *data)=0
	save gray8 image data
virtual void	SaveImageData (const BINARY *data)=0
	save binary image data
virtual void	SaveImageData (const RGB *data)=0
	save rgb image data
virtual void	SaveImageData (const GRAY16 *data)=0
	save gray16 image data
virtual void	SaveImageData (const RGB16 *data)=0
	save rgb16 image data
virtual void	SaveImageData (const float *data)
	save float image data
virtual void	SaveImageData (const double *data)
	save double image data
virtual void	SaveImageData (const int *data)
	save int image data
virtual void	SaveImageData (const Vector3d< float > *data)
	save Vector3d<float> data - empty function
virtual void	SaveImageData (const Vector3d< double > *data)
	save Vector3d<double> data - empty function
Protected Attributes
ImageFileHeader	header
	image file header structure instantiation

---

Detailed Description

General object for writting image file formats

---

Member Function Documentation

void i3d::ImageWriter::SetCompression

(

bool

comp

)

[inline]

Set the type of compression used when saving the appropriate image file. If 'comp' is false, no compression is used (if possible). If 'comp' is treu, the default compression is applied. For TIFF format it is LZW compression, for TARGA format RLE scheme is used, etc.

---

The documentation for this class was generated from the following files:

• imgfiles.h
• imgfiles.cc
