i3d::PDESolverFunction< VOXEL > Class Template Reference

This class is together with class PDESolver the root abstract class for wide family of classes which implements segmentation methods and image preprocessing filters. All these offsprings of this base class have one common feature. The key idea of those methods or filters is described by partial differential equation, which is evolving in time. This class serves to compute the difference between two timesteps. More...

#include <LevelSet.h>

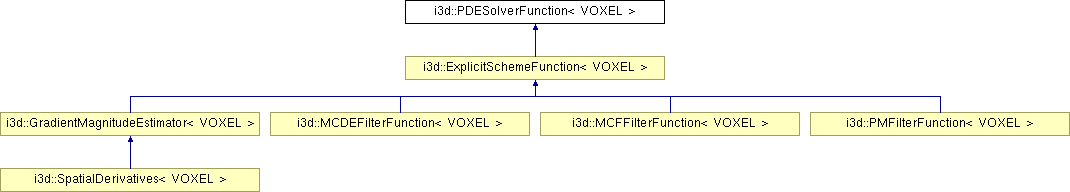

Inheritance diagram for i3d::PDESolverFunction< VOXEL >:

List of all members.


Public Member Functions
virtual void	ComputeUpdateData ()
	This function computes the $\tau F$ part of the PDE equation, if fills the buffer with the update.
VOXEL	GetGlobalTimeStep ()
	Returns the global time step which was computed by ComputeUpdateData function().
void	SetGlobalTimeStep (VOXEL ts)
	Set the fixed global time step.
void	SetSpeedImage (Image3d< VOXEL > *data)
	Set the Speed image. This image is used in some Level set methods.
virtual void	SetSpacing (float x, float y, float z)
	Set Spacing between voxels.
virtual void	SetSpacing (Vector3d< float > vec)
	Set Spacing between voxels.
Vector3d< float >	GetSpacing ()
	Get Spacing between voxels.
void	GetSpacing (float x, float y, float *z)
	Get Spacing between voxels.
void	SetEpsilon (VOXEL e)
	Set the epsilon parametr. If is greater than zero the curvature part of some Level Set methods will be take into the account in the computations.
VOXEL	GetEpsilon ()
	Get the epsilon parametr. If is greater than zero the curvature part of some Level Set methods will be take into the account in the computations.
Protected Attributes
VOXEL	GlobalTimeStep
	Global time step.
Image3d< VOXEL > &	Data
	Reference to the Data image (to the changing solution of the equation).
valarray< VOXEL > &	DataArray
	Reference to the Data image valarray (to the changing solution of the equation).
Image3d< VOXEL > *	SpeedImage
	Pointer to Speed image (it is needed to some Level Set methods).
Vector3d< float >	Spacing
	Spacing of the LevelSet lattice.
size_t	Dimensions
	Number of dimensions (2 or 3).
bool	FixedTimeStep
	True, if the time step should be fixed during the computation.

Detailed Description

template<class VOXEL>
class i3d::PDESolverFunction< VOXEL >

The partial differential equation, which is the core off all offsprings of PDESolver class, has following "general form":

$u_t = F(u_x,u_y,u_z,u_{xx},u_{yy},u_{zz},u_{xxx},...),$

where F is some function of spatial derivatives. The temporal derivation can be for example discretised by the forward Euler operator.

$\frac{u^{n+1}- u^{n}}{\tau} = F(u_x,u_y,u_z,u_{xx},u_{yy},u_{zz},u_{xxx},...),$

This leads to following explicit scheme:

$u^{n+1} = u^{n} + \tau F(u_x,u_y,u_z,u_{xx},u_{yy},u_{zz},u_{xxx},...),$

From this follows, that we have some initial state (input image, initial state of the segmentation, etc. ) we iteratively modify this state (we compute the filter on the image, we try to find correct segmentation) and after some time we find the solution of the equation.
